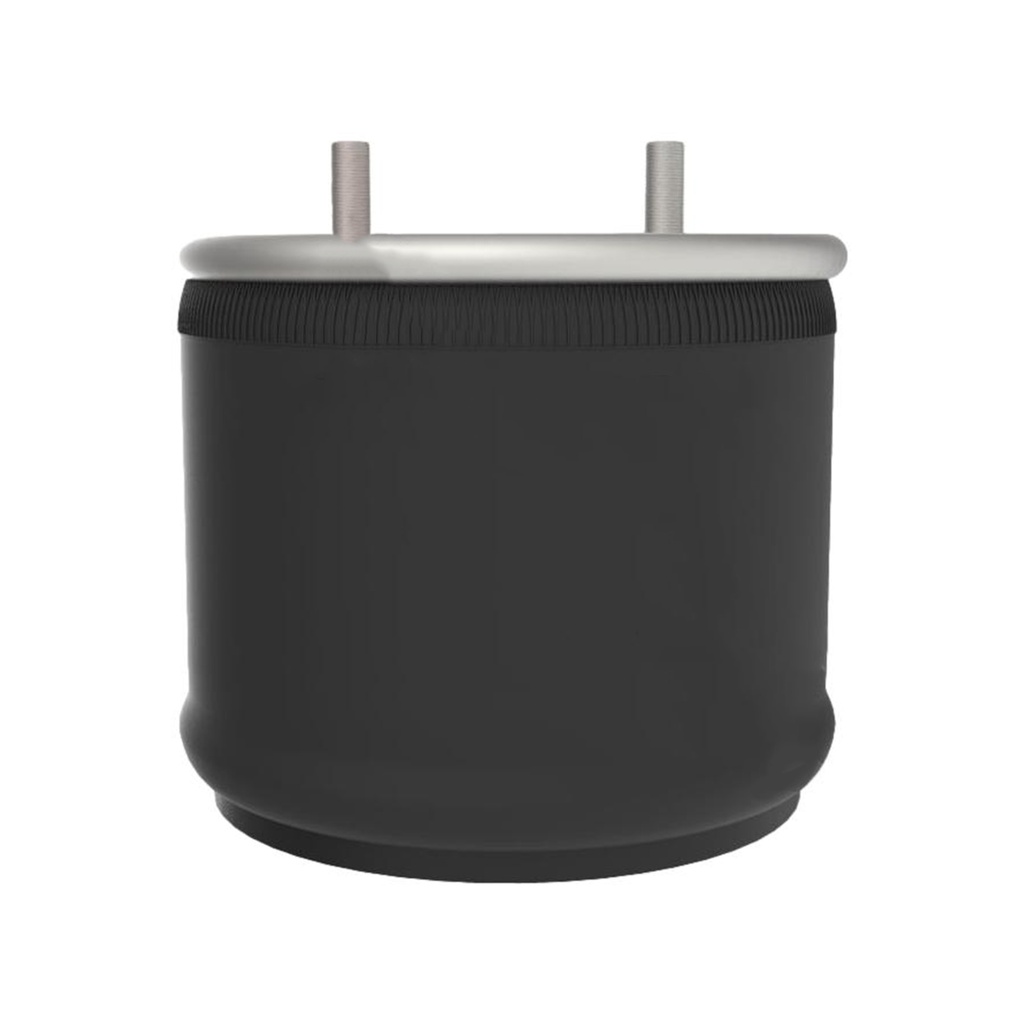

Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK28MFirestone Bellows#1T19LF-7Goodyear Bellows#566-28-3-042Contitech Bellows#11 10.5F-17.5Load (Lbs) @80 PSI9100Load (Lbs) @100 PSI11400Natural Freq. (CPM)81Design Height (In)10Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)11.31Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty1Bottom Plate Dia. (C)10.16Bottom Plate C to C Dia. (D)N/ABottom #BS10179BumperYesBracketN/AMin. Height5.1Max. Height19.4Max. Dia.15.4Cross Reference Name Number Notes Contitech65593Air Spring Rolling LobeFirestone8774Air Spring Rolling LobeGoodyear1R14172Air Spring Rolling LobeGoodyear1R14-172Air Spring Rolling LobeGoodyear1R14190Air Spring Rolling LobeGoodyear1R14-190Air Spring Rolling LobeHendricksonS25873Air Spring Rolling LobeHendricksonS27341Air Spring Rolling Lobe
