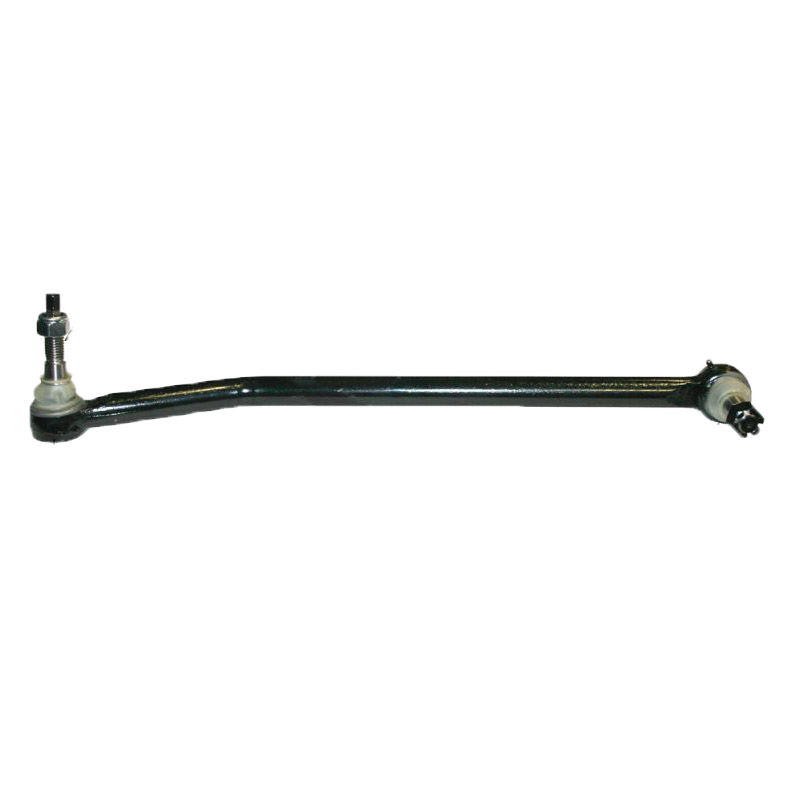

Specifications Attribute ValueC to C24.500”C to C (B) Type N-DE to E (A)14.500”Shaft Dia. (A)1.260”Male/FemaleMaleShaft Side Thread (E)1-1/8”-12 (RH)Taper Pin Minor Dia.-1 (B)0.787”Taper Pin Major Dia.-1 (C)0.902”Taper Pin Minor Dia.-2 (B)0.787”Taper Pin Major Dia.-2 (C)0.902”Taper Pin Length-1 (D)0.913”Taper Pin Thread-1 (E)3/4”-16Taper Pin Length-2 (D)0.913”Taper Pin Thread-2 (E)M18-2.5MakeGMCross Reference Name Number Notes Chevrolet/Gm15123670Drag Link ChevyChevrolet/Gm15790151Drag Link ChevyChevrolet/Gm15943455Drag Link ChevyIsuzu8159434550Drag Link Chevy
