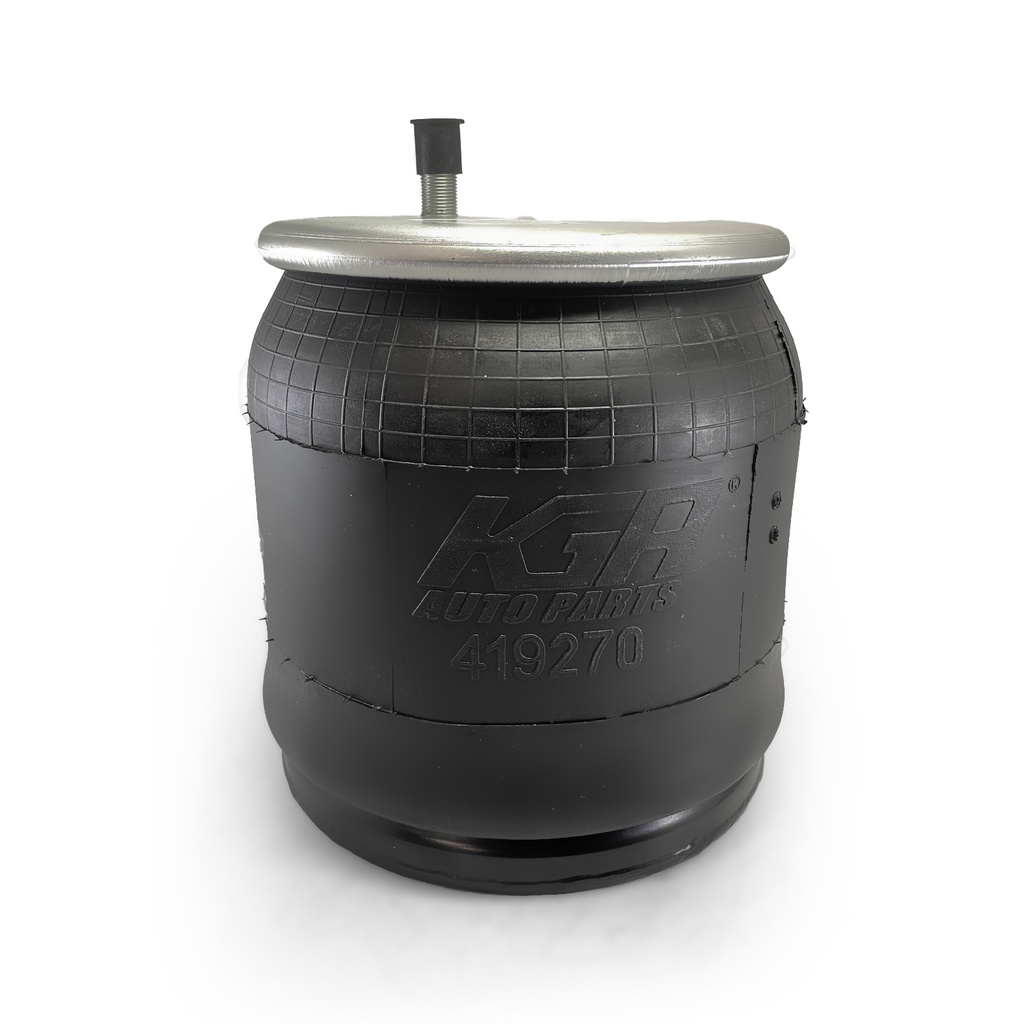

Air Spring Rolling Lobe 410.M9270 W01-358-9270 64287 85101147

(0 review)
7 sold in last 24 hours
2 people are viewing this right now
$ 135.99 $ 135.99

  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Manufacturer Part Number
  • OE/OEM Part Number
  • Other OEM Part Number
Add to cart
Buy now
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Brand: KGA
Cross Reference 1: C20010 C-20010 C25559 S20010 S-20010 S25559
Cross Reference 2: S2299270300 1003589270C 3946473 85101147 AS0084 AS-0084
Manufacturer Part Number: 410.M9270
OE/OEM Part Number: M-3542 161034 64287 9 10-13.5 S 433 9270 W013589270
Other OEM Part Number: W01-358-9270 1R13077 1R13-077 1R13102 1R13-102 1R13119


Specifications

AttributeValue
TypeRolling Lobe
Automann Bellows#1DK23I
Firestone Bellows#1T15VP-4
Goodyear Bellows#566-26-3-053
Contitech Bellows#9 10-13.5
Triangle Bellows#6300
Load (Lbs) @80 PSI7900
Load (Lbs) @100 PSI89
Natural Freq. (CPM)9.00
Bottom Plate TypeSteel
Top Plate Hole/Stud Qty1
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)N/A
Bottom Plate Hole/Stud Qty4
Bottom Plate Dia. (C)5.67
Bottom Plate C to C Dia. (D)5.67
Bottom Part #BS09758
Bottom Plate Alignment90 DEG
BumperYes
BracketN/A
Min. Height5.40
Max. Height16.80
Max. Dia.12.60

Cross Reference

NamePart NumberNotes
BWPM-3542Air Spring Rolling Lobe
Contitech161034Air Spring Rolling Lobe
Contitech64287Air Spring Rolling Lobe
Contitech9 10-13.5 S 433Air Spring Rolling Lobe
Firestone9270Air Spring Rolling Lobe
FirestoneW013589270Air Spring Rolling Lobe
FirestoneW01-358-9270Air Spring Rolling Lobe
Goodyear1R13077Air Spring Rolling Lobe
Goodyear1R13-077Air Spring Rolling Lobe
Goodyear1R13102Air Spring Rolling Lobe
Goodyear1R13-102Air Spring Rolling Lobe
Goodyear1R13119Air Spring Rolling Lobe
Goodyear1R13-119Air Spring Rolling Lobe
HendricksonC20010Air Spring Rolling Lobe
HendricksonC-20010Air Spring Rolling Lobe
HendricksonC25559Air Spring Rolling Lobe
HendricksonC-25559Air Spring Rolling Lobe
HendricksonS20010Air Spring Rolling Lobe
HendricksonS-20010Air Spring Rolling Lobe
HendricksonS25559Air Spring Rolling Lobe
HendricksonS-25559Air Spring Rolling Lobe
NewayG2299270300Air Spring Rolling Lobe
Ridewell1003589270CAir Spring Rolling Lobe
Volvo/White3946473Air Spring Rolling Lobe
Volvo/White85101147Air Spring Rolling Lobe
Watson&ChalinAS0084Air Spring Rolling Lobe
Watson&ChalinAS-0084Air Spring Rolling Lobe
