- Rear
- For 48in or 54in Box with Straight-Fitting
- Max Inflation to 120 PSI
- Cast Iron Type Built After 02-2015

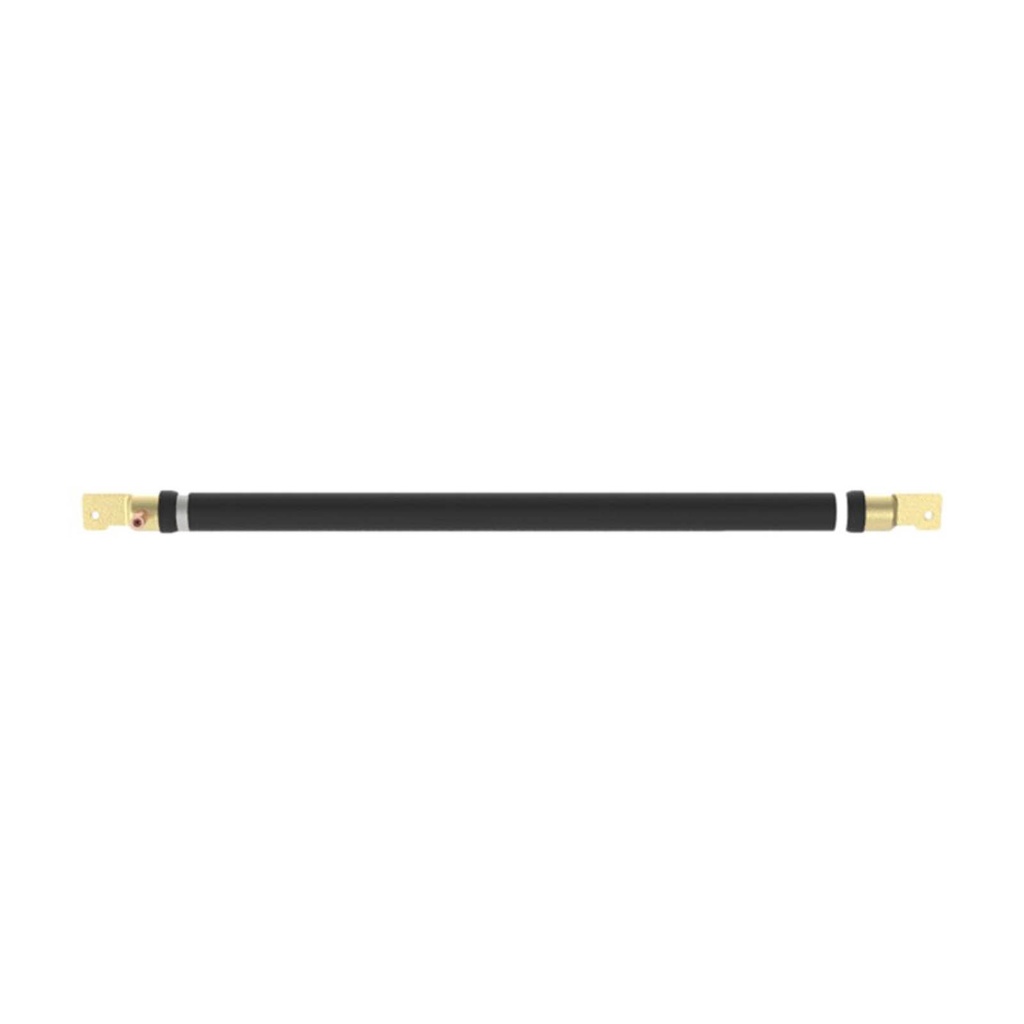

Product Overview
This Linear Slider Actuator Air Spring is responsible for safely securing the trailer bogie. When activated the air bag inflates; applying continuous pressure to the slider pins on either side of the trailer; firmly securing the bogie. This air spring makes for easy maintenance and repositioning of the trailer's suspension system.
Specific Features & Benefits
- Designed to service the rear end of the bogie; supports 48 in. or 54 in. box slider
- Applies continuous pressure to the slider pins to fix the suspension system in place
- Allows for simple and effective repositioning of the slider
- Features OEM dimensioning for hassle-free assembly
- Manufactured to be environmentally friendly and longer lasting
| Name | Part Number | Notes |
|---|---|---|
| Goodyear | 337354 | Rear Linear Actuator |
| Goodyear | 579-060-054-00000 | Rear Linear Actuator |
| Goodyear | 57906005400000 | Rear Linear Actuator |
| Hendrickson Trailer | B-28062-2 | Rear Linear Actuator |
| Hendrickson Trailer | B28062-2 | Rear Linear Actuator |
| Hendrickson Trailer | B280622 | Rear Linear Actuator |
| Hendrickson Trailer | S-28062-2 | Rear Linear Actuator |
| Hendrickson Trailer | S28062-2 | Rear Linear Actuator |
| Hendrickson Trailer | S280622 | Rear Linear Actuator |
